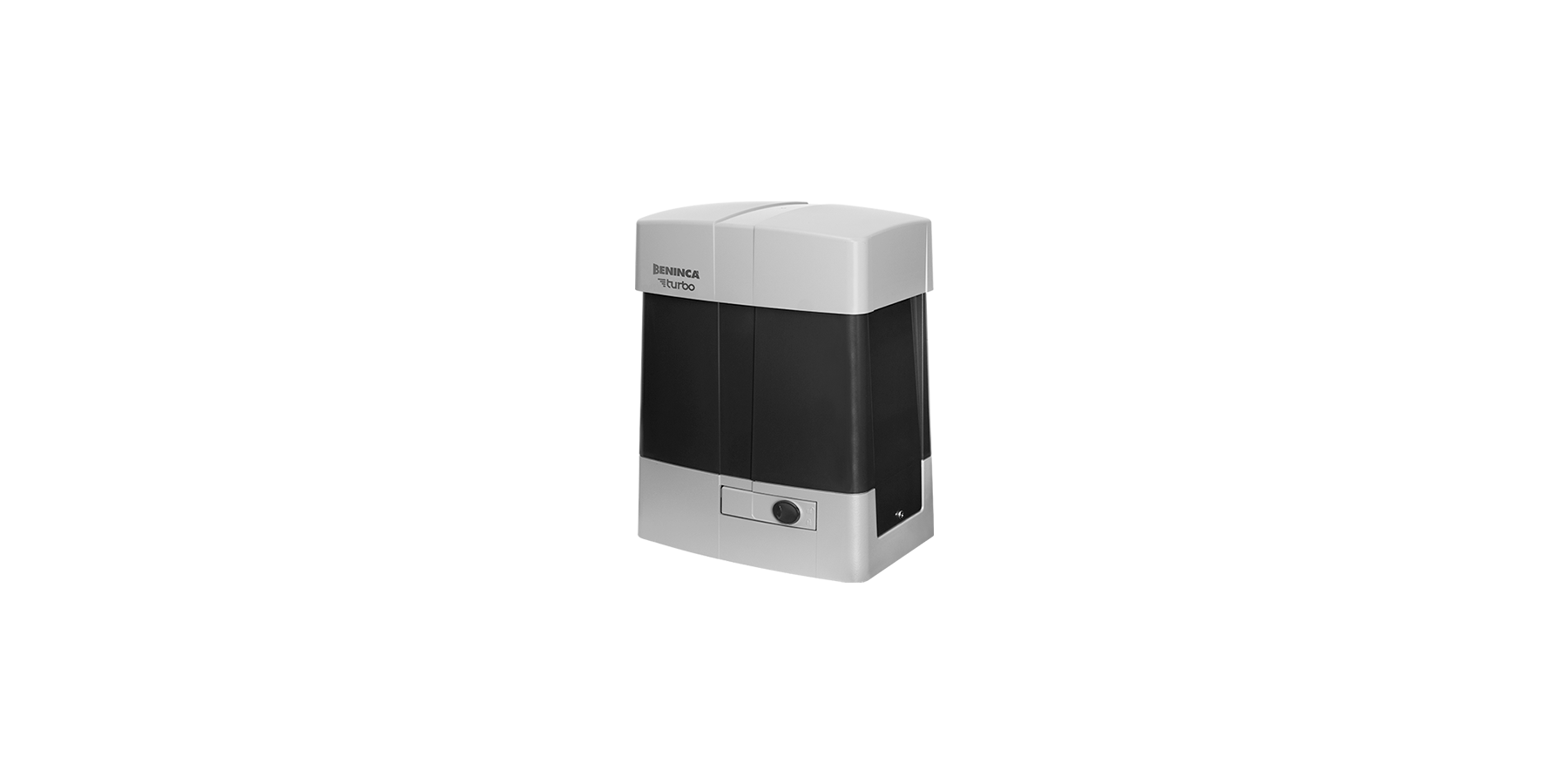

Geared motor BULL1224 TURBO.S
Commercial use
24 Vdc
Up to 1200 kg
Gear motor with opening speed higher than standard values
Maximum maneuver speed is 24 m/min
Encoder signal recreated by the control unit beginning with the measurements of electric motor operation parameters. It is possible to manage slowing optimally and trace gate travel while providing the torque data in relation to its position to guarantee maximum safety
Intelligent power control system that allows obtaining dynamic data through a precise calculation of the thrust. The system is able to locate any critical points and adjust the torque accordingly in relation to actual requirements and according to measured performance
Oil lubricated motors guarantee the maximum lifespan and high performances
433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)
This is a protocol for connection with KNX home automation systems by connection of the X.BE card (optional)
Predisposition to manage the control unit using the BeUP app and pro.UP accessory which, by recreating the control unit menu, makes it possible to adjust parameters and logic, read error messages and update the firmware. It is possible to perform remote diagnostics, check the status of the gate and send commands.
512 transmitters storable inside the receiver
BULL1224 TURBO.S
24 Vdc | intensive use

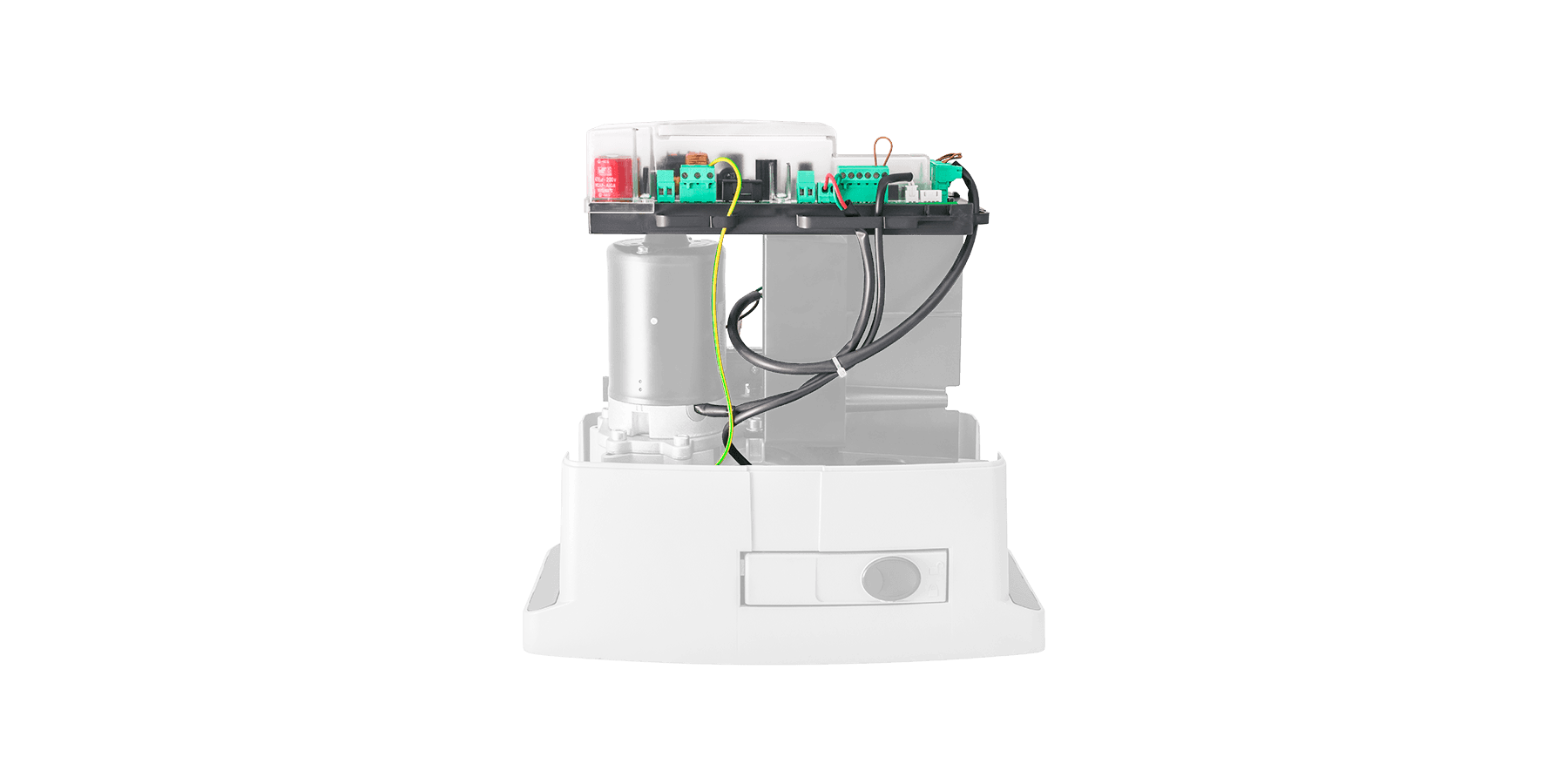

Fast 24 Vdc gear motor for intensive use with magnetic limit switches, integrated control unit and virtual encoder | Switching power supply 115/230 Vac which reduces energy consumption and ensures a long lifespan of the actuator | The main control unit, on the top part of the motor, makes it possible to facilitate the wiring procedure | The virtual encoder allows proper management of the slowing-down phases, movement tracking (STC system), and torque management in relation to the position of the gate, which guarantees maximum safety | Self-programming with transmitter can be activated at the first installation | Practical cableguides | Maximum performance and speed (24 m/min with 1200 kg) | Anti-crushing system with amperometric obstacle detection | Safety sensor that stops the motor power supply during release operations | Designed for the connection of the X.BE accessory in order to be integrated with KNX domotics installations and the programming through the app BeUP and the interface PRO.UP | Convenient compartment for 2 mod. DA.BT6 7 Ah batteries | Option to operate opposed sliding gates using the SIS accessory
Foundation plate with anchor bolts included. Motor and floor fixing distance 269x106 mm n.4 Ø 12 mm
| Power supply | 115 Vac / 230 Vac (50-60Hz) |
| Motor supply | 24 Vdc |
| Max absorbed current | 5 / 3 A |
| Maximum thrust | 550 N |
| Opening speed | 12,5 ÷ 24 m/min |
| Duty cycle | 80% |
| Protection level | IP44 |
| Built-in control unit | |
| Integrated receiver | |
| Encoder | |
| Virtual encoder | |
| Magnetic limit switches | |
| Pinion for rack | M4 Z18 |
| Operating temperature | -20°C /+50°C |
| Lubrication | OIL |
| Maximum gate weight | 1200 kg |
| Weight | 17.3 kg |
| N. motors per pallet | 20 |
CP.B24 TURBO
APPLICATION
1 actuator for sliding gates, series BULL624/1224 TURBO
CONTROL UNIT POWER SUPPLY
115 or 230 Vac (selectable) 50/60Hz
MOTORS POWER SUPPLY
24 Vdc / 20 A
MAIN FUNCTIONS
Integrated LCD display | Integrated 433.92 MHz 512-code radio receiver with ARC coding | Removable terminal boards | Automatic, semi-automatic and deadman’s logic | Motor limit switch inputs | Step by step, open, close and stop inputs | Photocell input (PHO) configurable as active in opening-closing or only in closing phases | Photocell input (PHC) active both in opening and closing phases | Input for N.C or 8K2 sensitive edge | Input for safety sensor | OPEN input configurable as pedestrian | Two outputs configurable as open gate indicator, courtesy light, zone light, second channel radio, photocell testing, flashing light, alarm contact | Output for connecting flashing light | Predesigned for the operation of opposed sliding gates through SIS synchronisation board (optional) | Predesigned for KNX connection through X.BE board (optional) | Designed for managing, configuring, diagnosing and updating firmware through the BeUP app, using the PRO.UP accessory | Autosetting of operating parameters | Electronic torque adjustment with automatic calculation for each point in the stroke (STC SYSTEM) | Anti-crushing safety thanks to amperometric obstacle detection | Virtual encoder | Adjustable slow-downs | Advantouch system to configure parameters and manage radio transmitters | Number of maneuvers | Programming access password | Maintenance warning | Integrated battery charger, compatible with battery models DA.BT2/DA.BT6
